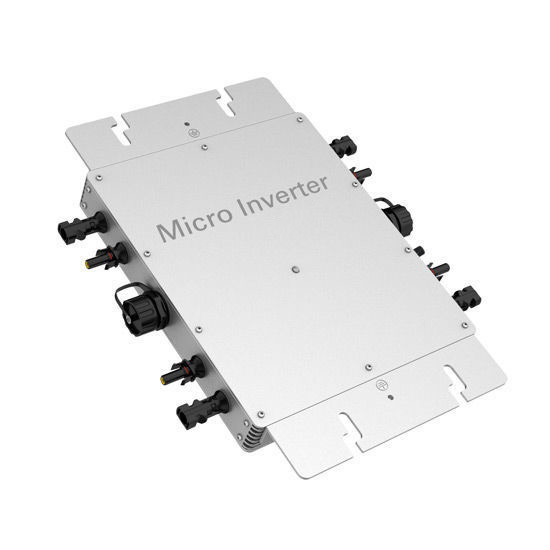

1400 Watt Solar Micro Inverter, Grid-tie Inverter

1400 watt solar grid tie inverter, micro inverter for sale, pure sine wave output, 24V/ 48V (22-50V DC) wide input voltage to 120V/ 230V AC output, it adopts reverse efficient power transmission technology, MPPT tracking function has an accuracy of over 99%.
SKU: ATO-WVC-1400
Free shipping
Delivery date: 6-12 days
*
*
$453.84
PRICE BREAKS - The more you buy, the more you save
Quantity 5+ 10+ 50+
Discount 3% OFF 4% OFF 5% OFF
Products specifications
Attribute name Attribute value
User Manual

PDF1400W Micro Inverter User Manual

1400W smart micro inverter is a on grid solar inverter with 433MHz wireless communication, converts 24V/ 48V (22-50V DC) to 80-160V/ 180-280V AC, IP65 waterproof streamline design, built-in high-performance MPPT function, more efficiency. The AC output can be automatically switched to 120V or 230V according to the local grid voltage.

Features

  • High performance maximum power point tracking (MPPT)
  • Reverse power transmission
  • Intelligent monitoring management
  • Input/output is fully isolated to protect the electrical safety
  • Multiple parallel stacking
  • Digital control system
  • Simplify maintenance (user serviceable)
  • Operation and maintenance costs low
  • Flexible installation
  • Use the wireless 433MHz communication mode

Parameter List

Model
ATO-WVC-1400-R3-433/WiFi
Maximum input power 1600 Watt
Output voltage mode 120/230V Auto switch
PV open circuit voltage 30-60VOC
Operating voltage range 22-60V
Starting voltage range 22-60V
Short-circuit current 64A
Maximum working current 53.8A
Output Parameters @120V AC @230V AC
Output peak power
1600 watt 1600 watt
Rated output power
1400W 1400W
Rated output current 11.6A 6A
AC voltage range 80-160V AC 180-280V AC
AC frequency range 48-51Hz/58-61Hz 48-51Hz/58-61Hz
Power factor >95% >95%
Maximum units per branch circuit 3PCS (single-phase) 6PCS (single-phase)
Output Efficiency @120V AC @230V AC
Static MPPT efficiency 99.5% 99.5%
Max output efficiency
95% 95%
Loss of power at night
<0.5W <0.5W
Total current harmonics
<5% <5%
Appearance and technical features
Temperature range
-40℃ to +60℃
Size (L×W×H)
370mm×300mm×41.6mm
Net amount
3kg
Waterproof grade
IP65
Heat dissipation mode
Self-cooling
Communication Mode 433MHz/WiFi (Data Collector for WiFi function, click here)
WIFI Connection iOS / Android (Monitor power generation, DC input & AC output display, etc.)
433MHz Data Collector Monitor 30 inverters simultaneously
Power transmission mode Reverse transfer, load priority
Monitoring System Mobile APP, computer browser
Electromagnetic compatibility EN50081.part1 EN50082.part1
Power grid
EN61000-3-2 Safety EN62109
Power grid detection
DIN VDE 1026
Certificate CEC, CE National patent technology
Warranty period 12 months
Packing weight
Weight
3.74KG
Size
430×375×140mm

APP Download

Use the mobile phone QR code scanning function to scan the QR code below to download the application (A-1), or download the "Cloud Smart" application(A-2) through the Apple Store or Google Store.

Mirco Inverter software QR code

*Note:  Use your Phone to scan QR code,download and install the APP Support: Android 5.0 or aboveIos 9.0 or Above. For more download steps, please check the User Manual.

Tips: Solar inverter functions

1. Initiative operation and stop: in the morning after sunrise, solar radiation intensity strengthen; gradually, the output of solar cells also increase, when the power reach the inverter required output power, then the inverter starts operation initiatively. During operation, the inverter monitors solar cell module's output in every moment, as long as the output power of the solar cell module is greater than the inverter's required output power, the inverter will operate continuously until sunset shutdown, the inverter can operate even in rainy days. When the output of solar modules becomes smaller, the inverter output is close to 0, the inverter will in a standby status.

2. Maximum power point tracking (MPPT): the output of solar cell modules is changeable according to solar radiation intensity and the solar cell modules' temperature. As the voltage of solar cell modules decreases when current increases, thus there is a best point of maximum power. The solar radiation intensity is changeable, obviously the maximum power point is also changeable. Related to these changes, make the solar cell modules in the maximum power point, the system obtains the maximum power output from the solar cell modules, which means MPPT control. The most important feature of the inverter in solar power system is integrated maximum power point tracking (MPPT) function.
