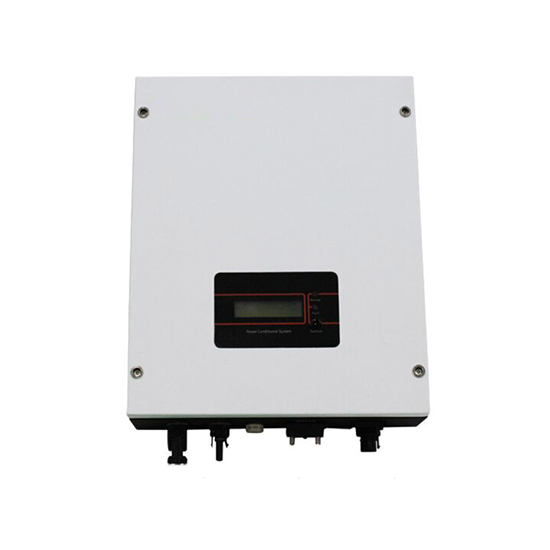

1500W Single Phase Grid Tie Solar Inverter

Good price 180-450V DC to 230V AC single phase grid tie inverter for home solar power system, it comes with 1500 watt AC output power, max DC input power up to 1600 watt, LCD display, transformerless compact design, high efficient MPPT to 99.5%.
SKU: ATO-GTI-1500
Free shipping
Delivery date: 6-20 days
*
$651.38
Products specifications
Attribute name Attribute value
Installation Guide

PDFSingle-phase Grid Tie Inverter Installation Guide

User Manual

PDFSingle-phase Grid Tie Inverter User Manual

1-phase sine wave on grid inverter with 1500W, wide input voltage range 180 volt to 450 volt, works in 50Hz / 60Hz low frequency solar system, converts DC power to AC 230V (190~270V), 110V output is available, is designed to power your home appliances.

Features

  • Can be applied to various fields, mainly for solar power, wind power, battery power, and scenery lamp power.
  • Strong IP65 protection, completed sealed cover suitable for harsh environment.
  • Advanced MPPT tracking technology, wide MPPT voltage range.
  • No isolation transformer H6 full-bridge configuration, highest efficiency reach 97%.
  • Over voltage, short circuit, overload, overheating, anti-islanding protection etc.
  • Multiple inverters can be operated in parallel.
  • LCD display, convenient for user to monitor main parameters.
  • Support various communication modes.

Parameter List

MODEL ATO-LT1500
DC INPUT Max. DC Input Power 1600 watt
Max. DC Input Voltage 450V DC
Max. DC Input Current 10A
MPPT Tracking Voltage Range 180-450V
MPPT Tracking Number / Each Input String Number 1
Power ON / OFF Voltage 100V / 60V
Input Terminal MC4
AC OUTPUT Power 1500W
Output Range Single phase AC 190~270V
Adjustable according to different countries and regions requirement.
Rated Voltage 230V AC (Optional: 110V)
Frequency 50Hz / 60Hz
Phase Single phase, 2 hot line (L1, L2+N) can be customized for this 1500W inverter.
Power Factor 1
Maximum Current 6.8A
Current THD At rated power and in the sine wave <3.5%
Max. Efficiency 97%
MPPT Efficiency 99.5%
Output Terminal AC connector
STRUCTURE Protection Degree IP65
Cooling Method Natural cooling
Topology No transformer
Noise <50db
Data Interfaces RS 485C / RS232 (Standard) / WiFi Module (Optional)
Isolation Type Non-isolated
Standby Power Consumption 0W
Display LCD dispaly
DC Switch Integration
AC Switch Integration
Protection Functions DC input switch, Anti-island, Output over-current, Input reverse connection, DC/AC surge protection, Insulation resistance testing, RCD testing, Upgrade WiFi
ENVIRONMENT Operation Temperature Air Flow, -10℃~40℃
Storage Temperature -20℃~60℃
Relative Humidity 0~100%
Altitude 2000m, max 3000m
OTHERS Size (W*H*D) 295*300*150mm
Weight 12kg
Certificate CE / G83 / IEC / TUV / SAA
Warranty 5 years

Tips: Why you need 1.5kW 1-phase grid tie solar inverter?

  1. If you buy 1500 watt grid tie inverter for your solar system, the value of your premises that have the grid tie solar system will be go higher, it will be more attractive to potential buyer in compared to same premises without solar system. And this will help you much if you decide one day to sell your premises especially in a tight real estate market.
  2. You will get considerable rebates, taxes credit, and/or low inters loan that are offered by most of governments and electric utilities all over the world.
  3. Buying 1.5kW grid tie inverter for solar system will not need maintenance, except just cleaning the solar panel surfaces, so can collect higher amount of sun beams and produce high amount of electrical energy.
  4. Of course, grid tied solar system is a clean source of generating electricity, no fossil fuel will be required, and no carbon emission will be existing! So, you assist in protecting our environment and avoid climate changes side effects which we become seeing it happened these days.
