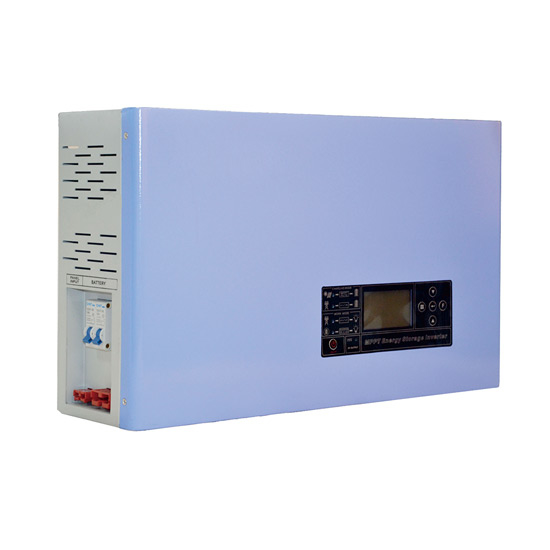

1500W 24/48V Solar Inverter with MPPT Charge Controller
1500W 24/48V Solar Inverter with MPPT Charge Controller
1500W 24/48V Solar Inverter with MPPT Charge Controller
1500W 24/48V Solar Inverter with MPPT Charge Controller

1500W 24/48V Solar Inverter with MPPT Charge Controller

1500 watt (2000VA) hybrid solar inverter with 30A/ 60A MPPT charge controller, pure sine wave output, 24 volt/ 48 volt DC to 110 volt/ 220 volt AC, powerful protection fuction, AC/ DC priority modes can be set.
1 review(s) | Add your review
SKU: ATO-IC-1500
Free shipping
Delivery date: 6-12 days
*
*
*
*
$850.48
Products specifications
Attribute name Attribute value
User Manual

PDFSolar Inverter with MPPT Charge Controller User Manual

Hybrid solar power inverter with 1500W rated power, built-in 30A or 60A MPPT charge controller, is extraordinarily designed for home use, which can convert DC 24V/ 48V of portable power supply to AC 110V/ 220V/ 230V.

1500W 24V Solar Inverter with MPPT Charge Controller Parameter List

Model ATO-IC-1500
Rated capacity 1500W (2000VA)
Size 486*385*169mm
Net Weight 30kg
Function Setting Time & date setting, Contrast, lightness, Switch voltage, Grid charge, Clear records, Operating parameter, Discharge limited setting, Reset
Working mode Grid priority/ Battery priority (optional)
Charge mode PV priority/ PV+grid (optional)
LCD dislpay Internal and External temperature, record query (fault record), system information query
PV input Voltage range 12V DC (18V-150V DC), 24V DC (34V-150V DC), 48V DC (65V-150V DC), 96V DC (130V-180V DC)
Battery max charge current 30A 60A
Battery volatge 24V/ 48V 24V/ 48V
Max power load 420W/ 840W 1700W/ 3400W
Float voltage 12V (13.75V), 24V (27.5V), 48V (55V), 96V (110V)
Equalization voltage 12V (14.2V), 24V (28.4V), 48V (56.8V), 96V (113.6V)
Grid Input Battery type Lead acid/ gel/ lithium (optional, factory setting)
Charge current 0-30A
Charge mode Improve charge, direct charge, float charge
AC Output AC charge current Standard: 0-30A
AC output voltage 110/ 220/ 230/ 240V ±3%
AC output frequency 50Hz/ 60Hz
Conversion Efficiency ≥85%
Overload 105-120% 30s, 120-150% 10s,>150% 5s
Output form Pure sine wave
Output power factor ≥0.8
Wave form distortion ≤3%
Switching time ≤4ms
Protection Function Overload capacity 105-120% 30s, 120-150% 10s,>150% 5s
Over discharge 10.5V (12V) DC/ 21V (24V) DC/ 42V (48V) DC/ 84V DC shut down after alarm
Over charge 16V (12V) DC/ 32V (21V) DC/ 64V (48V) DC/ 128V DC shut down after alarm
High temperature 85℃ auto shut down after alarm
Short circuit Auto shut down
Others Cooling method Fan cooling
Noise <60 dB
Operating temperature -10℃-50℃
Environment humidity 10%-90% (No condensation)
Working Elevation <5000m (>1000m, derating)

Solar Inverter with MPPT Charge Controller Working Mode Instructions

Solar inverter with MPPT charge controller work mode instructions

Tips: Off-peak power consumption mode of solar inverter with MPPT charge controller

For countries and regions where electric accounted according to time-of use, users can set timing work mode switching according to requirements. Regarding off-peak power consumption function, it will use AC power during the time of low power grid load and cheap power rate, it will fully charge to batteries at the same time. During the time of peak power grid load, it will make use of power stored in batteries to realize the purpose of off-peak power consumption and save electricity cost.

Hybrid solar power inverter with 1500W rated power, built-in 30A or 60A MPPT charge controller, is extraordinarily designed for home use, which can convert DC 24V/ 48V of portable power supply to AC 110V/ 220V/ 230V.

1500W 24V Solar Inverter with MPPT Charge Controller Parameter List

Model ATO-IC-1500
Rated capacity 1500W (2000VA)
Size 486*385*169mm
Net Weight 30kg
Function Setting Time & date setting, Contrast, lightness, Switch voltage, Grid charge, Clear records, Operating parameter, Discharge limited setting, Reset
Working mode Grid priority/ Battery priority (optional)
Charge mode PV priority/ PV+grid (optional)
LCD dislpay Internal and External temperature, record query (fault record), system information query
PV input Voltage range 12V DC (18V-150V DC), 24V DC (34V-150V DC), 48V DC (65V-150V DC), 96V DC (130V-180V DC)
Battery max charge current 30A 60A
Battery volatge 24V/ 48V 24V/ 48V
Max power load 420W/ 840W 1700W/ 3400W
Float voltage 12V (13.75V), 24V (27.5V), 48V (55V), 96V (110V)
Equalization voltage 12V (14.2V), 24V (28.4V), 48V (56.8V), 96V (113.6V)
Grid Input Battery type Lead acid/ gel/ lithium (optional, factory setting)
Charge current 0-30A
Charge mode Improve charge, direct charge, float charge
AC Output AC charge current Standard: 0-30A
AC output voltage 110/ 220/ 230/ 240V ±3%
AC output frequency 50Hz/ 60Hz
Conversion Efficiency ≥85%
Overload 105-120% 30s, 120-150% 10s,>150% 5s
Output form Pure sine wave
Output power factor ≥0.8
Wave form distortion ≤3%
Switching time ≤4ms
Protection Function Overload capacity 105-120% 30s, 120-150% 10s,>150% 5s
Over discharge 10.5V (12V) DC/ 21V (24V) DC/ 42V (48V) DC/ 84V DC shut down after alarm
Over charge 16V (12V) DC/ 32V (21V) DC/ 64V (48V) DC/ 128V DC shut down after alarm
High temperature 85℃ auto shut down after alarm
Short circuit Auto shut down
Others Cooling method Fan cooling
Noise <60 dB
Operating temperature -10℃-50℃
Environment humidity 10%-90% (No condensation)
Working Elevation <5000m (>1000m, derating)

Solar Inverter with MPPT Charge Controller Working Mode Instructions

Solar inverter with MPPT charge controller work mode instructions

Tips: Off-peak power consumption mode of solar inverter with MPPT charge controller

For countries and regions where electric accounted according to time-of use, users can set timing work mode switching according to requirements. Regarding off-peak power consumption function, it will use AC power during the time of low power grid load and cheap power rate, it will fully charge to batteries at the same time. During the time of peak power grid load, it will make use of power stored in batteries to realize the purpose of off-peak power consumption and save electricity cost.

Products specifications
Attribute name Attribute value
User Manual

PDFSolar Inverter with MPPT Charge Controller User Manual
Existing reviews
Solar inverter can be used at home
A few days ago, my family bought a solar inverter, which is specially designed for home use. It has powerful protection functions and can be used safely and securely. I like to use it very much and I recommend everyone to buy it.
yang yanhong | 2/2/2021 2:07 AM
Was this review helpful? Yes No (0/0)
