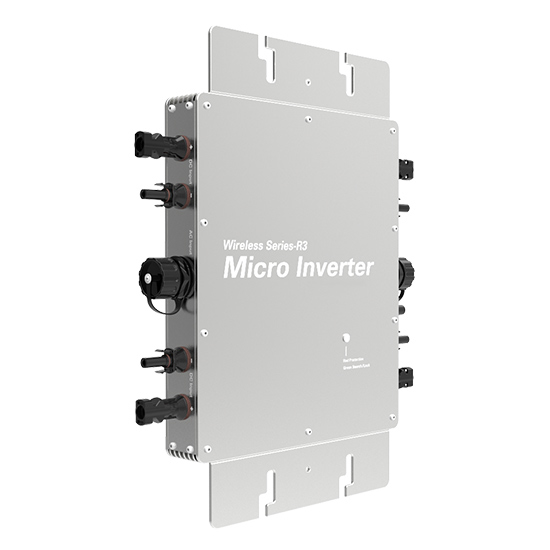

1600 Watt Solar Micro Inverter, Grid-tie Inverter
1600 Watt Solar Micro Inverter, Grid-tie Inverter 1600 Watt Solar Micro Inverter, Grid-tie Inverter 1600 Watt Solar Micro Inverter, Grid-tie Inverter 1600 Watt Solar Micro Inverter, Grid-tie Inverter

1600 Watt Solar Micro Inverter, Grid-tie Inverter

$469.92
PRICE BREAKS - The more you buy, the more you save
Quantity
5+
10+
50+
Discount
3% OFF
4% OFF
5% OFF
| 5 review(s) | Add your review
Order 1600 Watt smart solar grid tie inverter at the right price with 24V / 48V DC to 120V / 230V AC, built-in high-performance maximum power point tracking (MPPT) function, availably to capture and collect sunlight.
Free shipping
Delivery date: 6-12 days
SKU: ATO-WVC-1600
*
increase decrease
  • Overview
  • Reviews
Overview

1600W solar inverter is a grid tie inverter with super power capture algorithm, has high precision phase detection and maximum point tracking (MPTT), 99.5% MPTT effciency, converts 24V/ 48V (22-50V DC) wide input voltage to 120V/ 230V AC output, stable performance, install simply.

Features

  • High performance maximum power point tracking (MPPT)
  • Reverse power transmission
  • Intelligent monitoring management
  • Input/output is fully isolated to protect the electrical safety
  • Multiple parallel stacking
  • Digital control system
  • Simplify maintenance (user serviceable)
  • Operation and maintenance costs low
  • Flexible installation
  • Use the wireless 433MHz communication mode

Parameter List

Model
ATO-WVC1600-WiFi
Maximum input power
1600watt
Output voltage mode
120/230V Auto switch
PV Open circuit voltage
33-54VOC
Operating voltage range
24V/48V DC, range: 22-60V DC
Starting voltage range
22-60V DC
Short-circuit current
72.7A
Maximum working current
61.5A
Output Parameters @120V AC @230V AC
Output peak power
1600 watt 1600 watt
Rated output power
1550W 1550W
Output current
13.3A 6.95A
AC voltage range
80-160V AC 185-265V AC
AC frequency range
47-52Hz/57-62Hz 47-52Hz/57-62Hz
Power factor
>94% >94%
Number of branch connections 3PCS (single-phase) 3PCS (single-phase)
Output Efficiency @120V AC @230V AC
Static MPPT efficiency 99.5% 99.5%
Max output efficiency
95% 95%
Loss of power at night
<0.5W <0.5W
Total current harmonics
<5% <5%
Appearance and technical features
Temperature range
-20℃ to +50℃
Dimensions (WxHxD) 370x300x41.6mm
Net amount
3.0kg
Waterproof grade
IP65 NEMA3R
Heat dissipation mode
Self-cooling
Communication Mode
WiFi
WIFI Connection iOS / Android (Monitor power generation, DC input & AC output display, etc.)
433MHz Data Collector
Monitor 30 inverters simultaneously
Power transmission mode
Reverse transmission, Load priority
Monitoring System
Mobile phone APP, Browser
Electromagnetic compatibility
EN50081.part1 EN50082.Part1.CSA STD.C22.2 No.107.1
Power grid
EN61000-3-2 EN62109.UL STD.1741
Power grid detection
DIN VDE 0126 IEEE STD.1547.1547.1 and 1547.A
Certificate
CEC, CE, INMETOR, ETL, Patented technology
Warranty period 12 months
Packing weight
Weight
4KG
Size
430x375x140mm

APP Download

Use the mobile phone QR code scanning function to scan the QR code below to download the application (A-1), or download the "Cloud Smart" application (A-2) through the Apple Store or Google Store.

*Note: Use your Phone to scan QR code,download and install the APP Support: Android 5.0 or aboveIos 9.0 or Above. For more download steps, please check the User Manual.

Tips: What does the inverter for?

1. Automobile

The inverter used in the car requires a voltage of 220 volts and a frequency of 50 Hertz. The higher grade transformer is sine wave transformer, the price is slightly lower square wave inverter. A sinusoidal inverter uses the same amount of electricity as a socket, while a square wave inverter can actually be used. If the use of a fan and other motor devices, there will be some noise. Square wave inverter is used mainly because the modulation cost of this kind of inverter is relatively low.

2. Reverse laptop, TV and others

Inverters connected to notebooks, TV sets, disc players and other types of equipment, as long as it is used under the rated power conditions, there will be no failure problems. However, it should be noted that the inverter can be connected to the car battery when it is used, although it is usually in 11 volts when it will automatically power off, to prevent the voltage is too small to make the car cannot be opened, but it is still not suitable for the use of the engine does not operate. Therefore, if the use of load is relatively large, or should be used to start the engine.

3. Electric vehicles

There is a module called DC-DC on the electric vehicle, which is also called the DC conversion device. The input voltage of this module is 48V, and the output voltage is 12V. You only need to buy a 12V input voltage on-board inverter to use it. There are relatively many types of inverters, and different types have different performance and technical parameters. The specific use should be selected according to the use field and requirements.

Write your own review
*
*
Existing reviews
Perfect solar micro inverter
This 1600W solar micro inverter system helps me a lot. The monitoring system is easy to use and helps me keep track of my energy production, I am happy with this feature.
Emily Grace | 3/28/2023 3:09 AM
Was this review helpful? Yes No (0/0)
Much better than other grid tied inverters
I've burned out a couple of grid tied inverters over the last few years. All of them have melted where the solar panel wires connect to the input of the inverter. 1600 watt solar micro inverter in home power inverter has been functioning for several months without any signs of deterioration.
Wayne Smith | 12/8/2022 11:44 PM
Was this review helpful? Yes No (0/0)
Does what it says
As long as you connect the 1600watt micro inverter correctly, it can work normally. This is my first time connecting, everything seems to be fine.
patton Johnson | 4/22/2022 2:18 AM
Was this review helpful? Yes No (0/0)
Vertido cero
¿Se puede configurar para no inyectar a la red el excedente del micro inversor?
Carlos Cantón Padilla | 9/22/2021 9:10 AM
Was this review helpful? Yes No (0/0)
The use of solar micro inverter
My solar array is 600 watts and has 2 wires +/-. Can I insert these two wire into one side of the inverter, not using the other side?
Nchiker Nchiker | 9/13/2021 2:05 AM
Was this review helpful? Yes No (0/0)
Responded by inverter.com
Yes, for DC input, you can insert these two wire into one side of the inverter.
