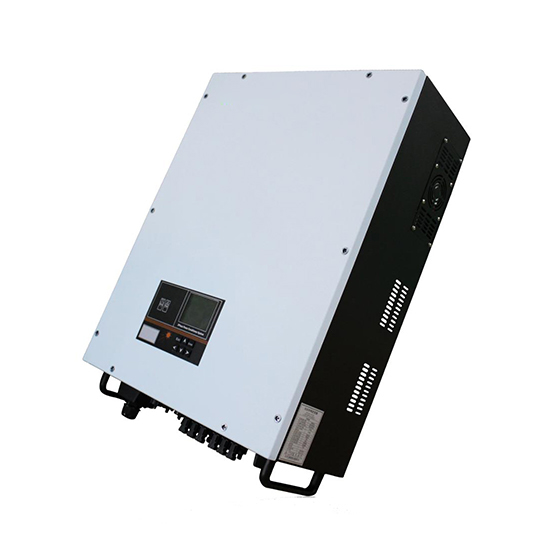

20kW Three Phase Grid Tie Solar Inverter
20kW Three Phase Grid Tie Solar Inverter
20kW Three Phase Grid Tie Solar Inverter

20kW Three Phase Grid Tie Solar Inverter

$3,592.62
| 1 review(s) | Add your review
Pure sine wave 20kW rated power grid tie solar inverter with competitive price and excellent quality, 2 MPPT, maximum input voltage to 850V, three phase 240V/ 380V/ 460 AC rated output voltage. The protection degree of the 20kw grid tie inverter is IP65. MPPT efficiency can reach 99.5% with perfect self-detection and self-protection function. 3 phase on grid solar inverter is a good choice for home or industrial use.
Delivery date: 6-12 days
SKU: ATO-GTI-TLC20000
*
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
increase decrease
  • Overview
  • Specs
  • Manual
  • FAQ
  • Reviews
Overview

Wide range 200-820 volt DC to three phase 208-480 volt AC on grid inverter operates at 50Hz/60Hz low frequency, 20kW rated capacity, transformerless design and high power density, LCD main parameters, with wide MPPT voltage, easy to install, is a perfect solution for grid tied solar power system. As a grid tie inverter, it synchronizes with the grid's voltage and frequency, allowing excess electricity produced by the solar panels to be exported to the grid.


Features:

  • LCD is convenient for the user to monitor the main parameters of the grid tie inverter.
  • On-grid solar inverter with over-voltage, short circuit, overload, overheating, anti-islanding protection, etc.
  • Strong IP65 protection and a completely sealed cover suitable for harsh environments.
  • The on-grid inverter adopts with no isolation transformer H6 full-bridge configuration, highest efficiency reach 97%.
  • Multiple inverters can be operated in parallel and support various communication modes.
  • Advanced MPPT tracking technology and wide MPPT voltage range, which optimizes the power output from solar panels by adjusting the voltage and current for maximum efficiency.

Details:

3 phase gird tie inverter LCD display

LCD Display

It provides real-time monitoring and feedback on the 20kW grid tie solar inverter system's performance, allowing users to quickly identify any issues or anomalies. This promotes efficient troubleshooting and maintenance and enhances the user interface, allowing for easy configuration and adjustment of settings for optimal performance.
DC input connection

DC Input Connection

It enhances flexibility as DC input allows for easy integration with various renewable energy sources like solar panels or batteries, facilitating hybrid energy systems and improving the overall reliability of the on-grid inverter. DC input configurations enable easier implementation of maximum power point tracking (MPPT) algorithms, optimizing energy harvesting from solar arrays.
Precise internal construction

Precise Internal Construction

It improves reliability and longevity by reducing heat generation and stress on components, leading to a more durable system of grid tie power inverter. Precise construction enables better control over voltage and frequency, ensuring stable and synchronized power delivery to the grid, which is crucial for maintaining grid stability and preventing disruptions.


Applications:

Remote location

Remote Location

Solar farm

Solar Farm

Battery power

Battery Power

Wind power

Wind Power

Specs
MODEL ATO-GTI-TLC20000
DC INPUT Max. DC Input Power 21000 watt
Max. DC Input Voltage 850V DC
Max. DC Input Current 60A
MPPT Tracking Voltage Range 200-820V
MPPT Tracking Number / Each Input String Number 1
Power ON / OFF Voltage 200V / 300V
Input Terminal MC4
AC OUTPUT Power 20kW
Output Voltage Default AC 3-phase 380V±5%, (Optional: 208V, 240V, 460V, 480V with ±5% tolerance)
Frequency 50Hz / 60Hz
Phase 3 phase 4 line (3L+N+PE)
Power Factor 0.9
Maximum Current 30A
Current THD At rated power and in the sine wave <3.5%
Max. Efficiency 98.6%
MPPT Efficiency 99.5%
Output Terminal Connect terminals
STRUCTURE Protection Degree IP65
Cooling Method Cooling fan
Topology No transformer
Noise <50db
Data Interfaces RS 485C / RS232 (Standard) / WiFi Module (Optional)
Isolation Type Non-isolated
Standby Power Consumption <5W
Display LCD
DC Switch Integration
AC Switch Integration
Protection Functions DC input switch, Anti-island, Output over-current, Input reverse connection, DC/AC surge protection, Insulation resistance testing, RCD testing, Upgrade WiFi,
Flexible solar panel
ENVIRONMENT Operation Temperature Air Flow, -10℃~40℃
Storage Temperature -20℃~60℃
Relative Humidity 0~100%
Altitude 2000m, max 3000m
OTHERS Size (W*H*D) 550*730*270mm
Weight 85kg for 380V, 233kg for other customized voltages
Certificate CE / G83 / IEC / TUV / SAA
Warranty 5 years
Manual

PDFThree-phase Grid Tie Inverter Installation Guide

PDFThree-phase Grid Tie Inverter User Manual

FAQ

What are the tips before installing solar PV system?

Before installing your solar photovoltaic system, there are some points to keep in mind and to do, so we suggest to make checklist including the following points:

  1. You have to check solar systems installers in your area, and prepare a list of their contact information, prelude to contact them for a quote.
  2. Before going on solar system installation, you have to be aware of changes that will be occurred on your electricity meter, your tariff, and electricity bill.
  3. Read more about solar photovoltaic system, and prepare checklist for some key questions to ask the solar installer about when he visits you. It should be noted that the solar inverter is an indispensable part of the photovoltaic system. The main function of the solar inverter is to convert the direct current generated by the solar panel into the alternating current used by home appliances.
  4. Make sure your selected installation company has credited installers, and better to ask them for installers name and license number.
  5. Ask selected solar installer about solar rebates and how they will be applied.
Write your own review
*
*
Existing reviews
Safe grid-connected inverter
The grid-connected inverters I bought before were of poor quality and not very safe, and they smoked after a short period of time. So this time when I want to buy an inverter, I pay special attention to the safety protection of the inverter. This inverter has overvoltage, short circuit, overload, overheating, and anti-islanding protection. It is an ideal type of inverter, and I have always wanted it.
Stefano Radici | 11/18/2020 8:13 PM
Was this review helpful? Yes No (0/0)
Load more...
