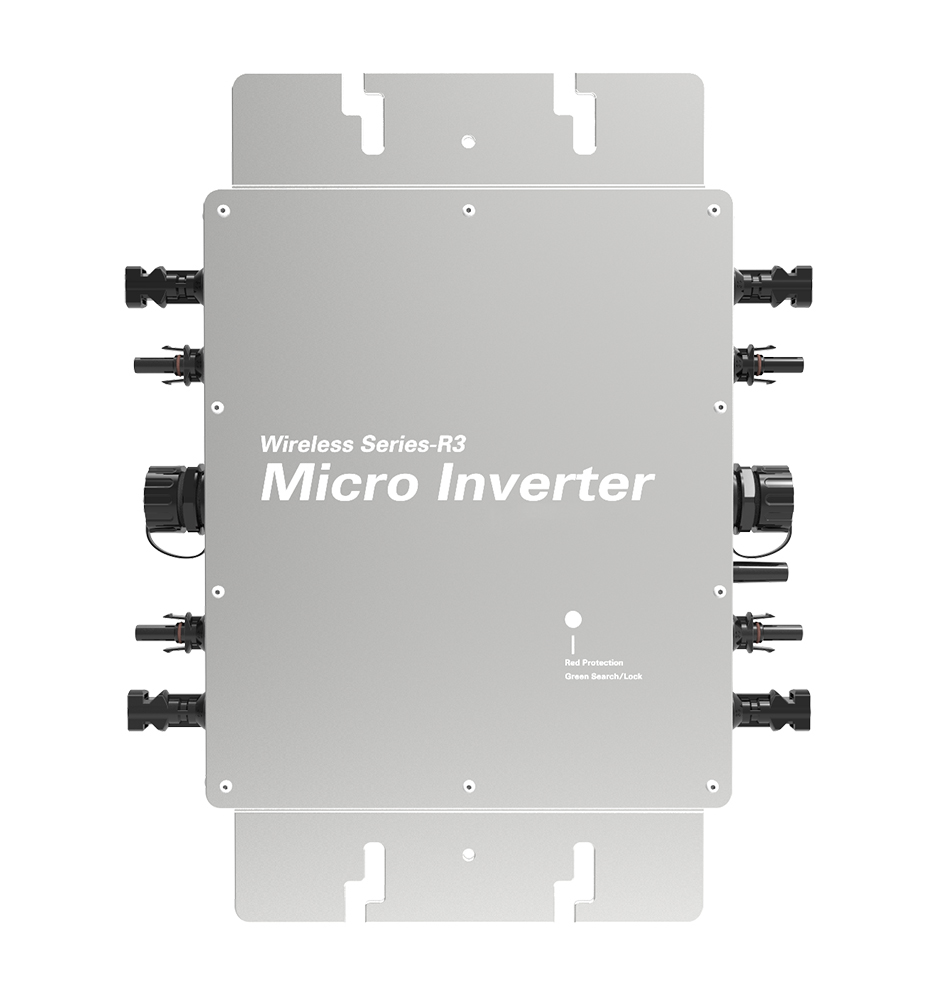

2400 Watt Solar Micro Inverter, Grid-tie Inverter
2400 Watt Solar Micro Inverter, Grid-tie Inverter
2400 Watt Solar Micro Inverter, Grid-tie Inverter
2400 Watt Solar Micro Inverter, Grid-tie Inverter
2400 Watt Solar Micro Inverter, Grid-tie Inverter

2400 Watt Solar Micro Inverter, Grid-tie Inverter

$434.52
PRICE BREAKS - The more you buy, the more you save
Quantity
5+
10+
50+
Discount
3% OFF
4% OFF
5% OFF
| 3 review(s) | Add your review
2400 watt grid tie solar inverter, smart and cheap micro inverter with 433MHz wireless communication, operating in a voltage of 22-60V, IP65 waterproof design. Solar cell micro inverter built-in high-performance maximum power point tracking (MPPT) function, accuracy of 99.5%, availably to capture and collect sunlight.
Free shipping
Delivery date: 6-12 days
SKU: ATO-WVC-2400-WiFi
*
*
increase decrease
  • Overview
  • Specs
  • Manual
  • FAQ
  • Reviews
Overview

IP65 waterproof 2400 watt micro grid tie solar inverter, it can completely prevent dust from entering and harmful dust accumulation, 30~54V DC Input connected to PV module, unique circuit design, stable and higher efficiency. MPPT micro inverter plays a crucial role in optimizing the performance of solar energy systems by mitigating issues such as shading, panel mismatch, and system monitoring.


Features:

  • Input/output is fully isolated to protect the electrical safety
  • Flexible installation, operation, and maintenance costs are low
  • High-performance maximum power point tracking (MPPT), reverse power transmission, increasing system efficiency
  • Multiple parallel stacking, digital control system, intelligent monitoring management, and simplified maintenance (user serviceable)

Details:

Waterproof connector

Waterproof Protection

The shell of the microgrid inverter is made of pure aluminum alloy with a low resistance copper core. It enhances safety by reducing the risk of electrical hazards, such as short circuits or corrosion due to moisture exposure. They protect against water ingress, preventing damage and ensuring the longevity of the system.
MPPT technology

MPPT

MPPT enhances energy harvest, leading to higher overall system efficiency and increased electricity production. It also improves system reliability by reducing stress on components. Additionally, MPPT allows for more flexible system design, as each panel operates independently, making it easier to expand or modify installations without impacting the overall performance of a 2400W grid tie micro inverter.
Power chip

Power Chip

The pv micro inverter is equipped with a high-speed digital processing chip, which makes the operation more stable. It enhances efficiency by optimizing power conversion processes, minimizing energy losses, and maximizing power output. Multi-channel maximum power point tracking, high-precision capture of solar light.


Applications:

Solar roof

Solar Roof

PV communication station

PV Communication Station

Farming generation system

Farming Generation System

Small power station

Small Power Station

Specs
Model
ATO-WVC-2400-WiFi
Maximum input power 2600 W
Output voltage mode
120/230V Auto switch; 120V/240V Split phase (L1, L2, G) output option contact us
PV Open circuit voltage
33-54VOC
Operating voltage range
22-60V DC
Starting voltage range
22-60V DC
Short-circuit current
110A
Maximum working current
92A
Output Parameters @120V AC @230V AC
Output peak power
2600 W 2600 W
Rated output power 2400 W 2400 W
Output current
20A 10.5A
AC voltage range
85-160V AC 180-260V AC
AC frequency range
47-52/57-62 Hz
47-52/57-62 Hz
Power factor >94% >94%
Number of branch connections
2PCS (single-phase) 4PCS (single-phase)
Output Efficiency @120V AC @230V AC
Static MPPT efficiency 99.5% 99.5%
Max output efficiency
95% 95%
Loss of power at night
<0.5W <0.5W
Total current harmonics
<5% <5%
Appearance and technical features
Temperature range
-20℃ to +50℃
Size (L×W×H)
370mm×300mm×41.6mm
Net amount
3.3kg
Waterproof grade
IP65 NEMA3R
Heat dissipation mode
Self-cooling
WIFI connection iOS / Android (Monitor power generation, DC input & AC output display, etc.)
433MHz data collector
Monitor 30 inverters simultaneously
Communication mode
WiFi
Power transmission mode
Reverse transmission, Load priority
Monitoring system
Mobile phone APP、Browser
Electromagnetic compatibility
EN50081.part1 EN50082.Part1.CSA STD.C22.2 No.107.1
Power grid
EN61000-3-2 EN62109.UL STD.1741
Power grid detection
DIN VDE 0126 IEEE STD.1547.1547.1 and 1547.A
Certificate
CEC, CE, INMETOR, ETL, Patented technology
Warranty period 12 months
Packing weight
Weight
4 KG
Size
430×375×140mm
Manual

PDF1200W-2800W Micro Inverter User Manual

FAQ

What are the differences between inverter and transformer?

  • Character. Inverter is a converter that converts DC electric energy into fixed-frequency and constant-voltage or frequency-modulated alternating current (usually 220V, 50Hz sine wave). Transformer is a device that uses the principle of electromagnetic induction to change the AC voltage.
  • Function. Inverter is an electronic device that converts low-voltage (24 or 48V) direct current into 220V alternating current. The main functions of transformer are: voltage transformation, current transformation, impedance transformation, isolation, and voltage stabilization.
  • Application. Inverters are widely used in air conditioners, home theaters, electric grinding wheels, power tools, DVDs, computers, TVs, washing machines, range hoods, refrigerators, video recorders, lighting, etc. Transformers are used in industry, agriculture, transportation and urban communities.
