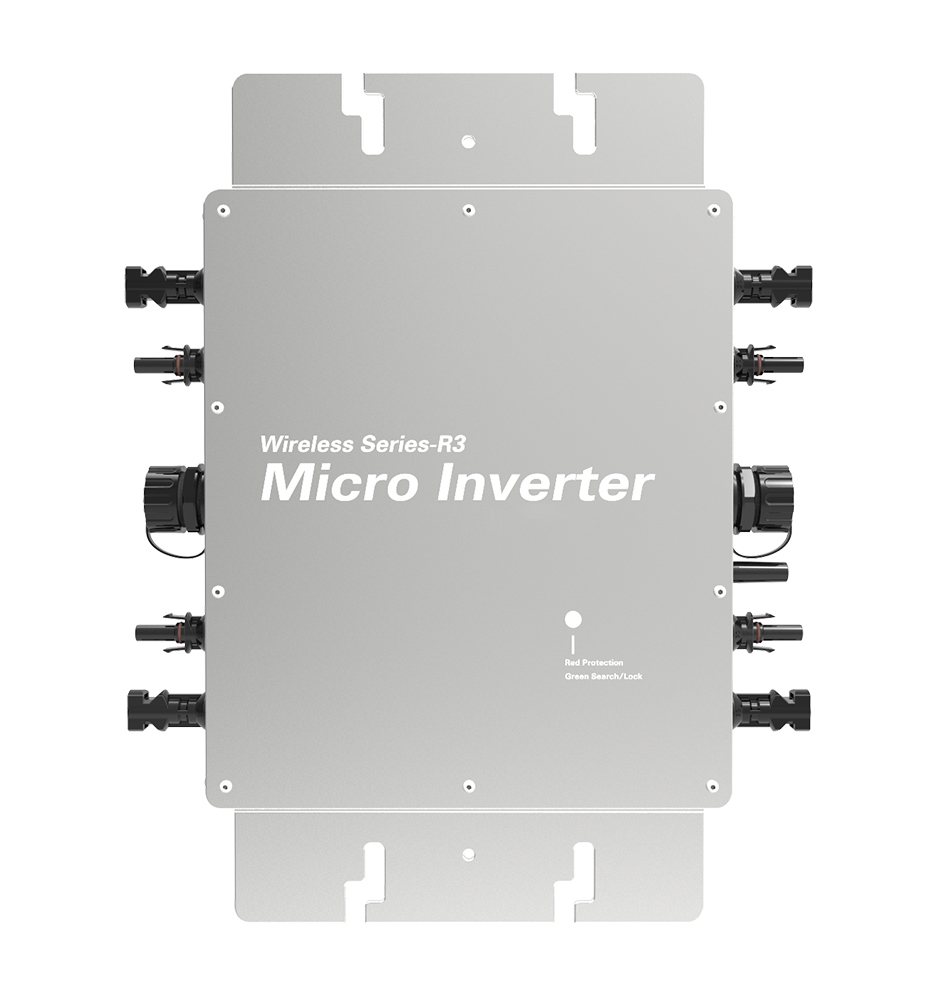

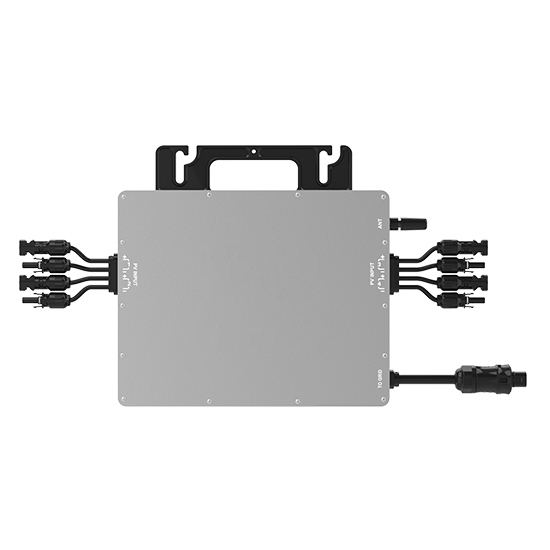

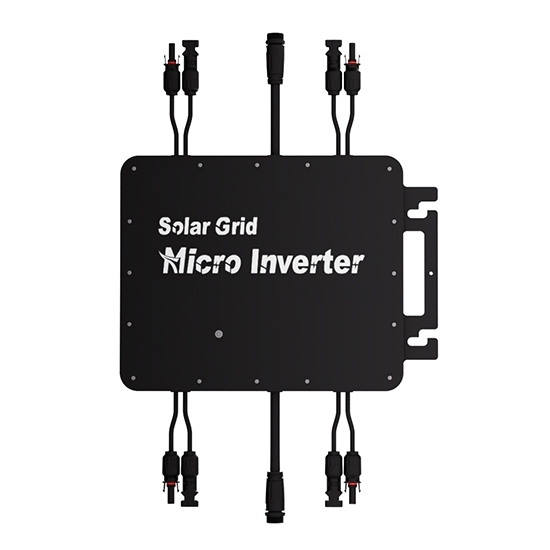

2800 Watt Solar Micro Inverter, Grid-tie Inverter
2800 Watt Solar Micro Inverter, Grid-tie Inverter
2800 Watt Solar Micro Inverter, Grid-tie Inverter
2800 Watt Solar Micro Inverter, Grid-tie Inverter
2800 Watt Solar Micro Inverter, Grid-tie Inverter

2800 Watt Solar Micro Inverter, Grid-tie Inverter

$472.06
PRICE BREAKS - The more you buy, the more you save
Quantity
5+
10+
50+
Discount
3% OFF
4% OFF
5% OFF
| 4 review(s) | Add your review
The micro solar inverter price is reasonable and high quality. Long lasting 2800W photovoltaic micro inverter, two output parameters of 120V and 230V, available temperature range between -20 °C to +50 °C, output efficiency can be reached 95%, loss of power at night less than 0.5W. The heat dissipation mode of this solar cell micro inverter is self-cooling.
Free shipping
Delivery date: 6-12 days
SKU: ATO-WVC-2800-WiFi
*
*
increase decrease
  • Overview
  • Specs
  • Manual
  • FAQ
  • Reviews
Overview

ATO-WVC-2800 grid tie solar micro inverter has a digital control system. In this way, it can collect data in real time. In addition, solar micro inverter combines with the communication function and can also be used to monitor the status of each module and detect the failed component. Micro inverter offers advantages such as improved energy production, system monitoring capabilities for individual panels, and increased system reliability compared to traditional inverters.


Features:

  • Input/output is fully isolated to protect the electrical safety
  • Flexible installation, operation, and maintenance costs are low
  • High-performance maximum power point tracking (MPPT), reverse power transmission, increasing system efficiency
  • Multiple parallel stacking, digital control system, intelligent monitoring management, and simplified maintenance (user serviceable)

Details:

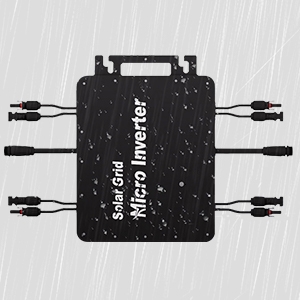

Waterproof connector

Waterproof Connector

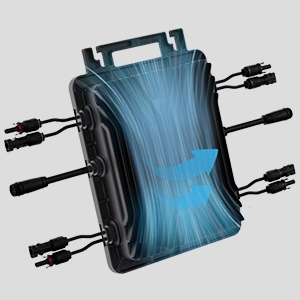

The shell of the microinverter is made of pure aluminum alloy with a low resistance copper core. Waterproof connectors enhance safety by reducing the risk of electrical hazards, such as short circuits or corrosion due to moisture exposure. They protect against water ingress, preventing damage and ensuring the longevity of the system.
MPPT technology

MPPT

MPPT enhances energy harvest, leading to higher overall system efficiency and increased electricity production. It also improves system reliability and longevity by reducing stress on components. Additionally, MPPT allows for more flexible system design, as each panel operates independently, making it easier to expand or modify installations without impacting the overall performance of the MPPT micro inverter.
Power chip

Power Chip

The 2800-watt PV micro inverter is equipped with a high-speed digital processing chip, which makes the operation more stable. It enhances efficiency by optimizing power conversion processes, minimizing energy losses, and maximizing power output. Multi-channel maximum power point tracking, high-precision capture of solar light.


Applications:

Solar roof

Solar Roof

PV communication station

PV Communication Station

Farming generation system

Farming Generation System

Small power station

Small Power Station

Specs
Model
ATO-WVC-2800-WiFi
Maximum input power 3000 W
Output voltage mode
120/230V Auto switch; 120V/240V Split phase (L1, L2, G) output option contact us
PV Open circuit voltage
33-54VOC
Operating voltage range
22-60V DC
Starting voltage range
22-60V DC
Short-circuit current
128A
Maximum working current
108A
Output Parameters @120V AC @230V AC
Output peak power
3000 W 3000 W
Rated output power 2800 W 2800 W
Output current
23.5A 12.2A
AC voltage range
85-160V AC 180-260V AC
AC frequency range
47-52/57-62Hz
47-52/57-62Hz
Power factor >94% >94%
Number of branch connections
2PCS (single-phase) 4PCS (single-phase)
Output Efficiency @120V AC @230V AC
Static MPPT efficiency 99.5% 99.5%
Max output efficiency
95% 95%
Loss of power at night
<0.5W <0.5W
Total current harmonics
<5% <5%
Appearance and technical features
Temperature range
-20℃ to +50℃
Size (L×W×H)
370mm×300mm×41.6mm
Net amount
3.3kg
Waterproof grade
IP65 NEMA3R
Heat dissipation mode
Self-cooling
Communication mode
WiFi

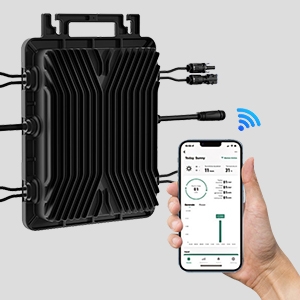

WIFI connection iOS / Android (Monitor power generation, DC input & AC output display, etc.)
433MHz data collector Monitor 30 inverters simultaneously
Power transmission mode
Reverse transmission, Load priority
Monitoring system
Mobile phone APP, Browser
Electromagnetic compatibility
EN50081.part1 EN50082.Part1.CSA STD.C22.2 No.107.1
Power grid
EN61000-3-2 EN62109.UL STD.1741
Power grid detection
DIN VDE 0126 IEEE STD.1547.1547.1 and 1547.A
Certificate
CEC, CE, INMETOR, ETL, Patented technology
Warranty period 12 months
Packing weight
weight
4 KG
Size
430×375×140mm
Manual

PDF1200W-2800W Micro Inverter User Manual

FAQ

What are the advantages of solar micro inverter?

  • Low DC voltage.

In traditional photovoltaic systems, there is a risk of DC arcs caused by insulation damage or poor contact of connectors during long-term operation. The arc temperature can reach thousands of degrees, which can cause fire and cause personal injury. In the micro-inverse system, each photovoltaic component intervenes independently in the inverter, so there is no risk of arcing.

  • High system efficiency.

Component level MPPT. For the micro-inverse system, each component is individually connected to the inverter, so there is no series coupling of photovoltaic cells in the system. Therefore, there is no short-board effect. If some photovoltaic component are blocked or damaged, the power generation performance of the rest of the system will not be affected in any way. It can greatly improve the system’s anti-shadow performance and complex environment adaptability.

High dynamic MPPT efficiency. Because of the low power of component-level MPPT, the control and response speed of the system can reach 10 milliseconds, which is tens of times or even a hundred times that of traditional inverters. Therefore, in cloudy weather or other occasions where the light changes rapidly, the efficiency of the micro inverter is also 1-2% higher than that of others traditional.

Write your own review
*
*
Existing reviews
What is the Max Input Current of each input (Por Chanel) of 2800 Watt Solar Micro Inverter, Grid-tie Inverter ?
What is the Max Input Current of each input (Por Chanel) of  2800 Watt Solar Micro Inverter, Grid-tie Inverter ?

For example the total maximum operating current is 108 A = 4 * 27 A

Each input = 27 A ?
Tinko Bonev | 11/28/2023 4:08 AM
Was this review helpful? Yes No (0/0)
Easy home energy self-sufficiency
This 2800 watt solar microinverter has really been the key to my family's energy transition! It has enabled my home's solar panels to be efficiently connected to the grid, not only providing a sizable amount of energy, but also delivering excess power back to the grid. Simple to use, I'm now more self-sufficient and have greatly reduced my electric bill!
Asher le | 11/24/2023 12:47 AM
Was this review helpful? Yes No (0/0)
Installation is simple
The 2800-watt solar inverter is quiet, reliable, and easy to operate, greatly improving our energy utilization. The grid-connected function is very satisfactory, the installation is simple, and the solar power generation effect is first-rate.
Caden zhao | 10/31/2023 1:26 AM
Was this review helpful? Yes No (0/0)
Warranty of 2800W solar micro inverter
If this 2800W solar micro inverter is damaged during the warranty period, will you guarantee it?
Jhawk Jhawk | 7/12/2021 7:31 PM
Was this review helpful? Yes No (0/0)
Responded by inverter.com
Yes, we will repair the 2800W solar micro inverter during the warranty period.
