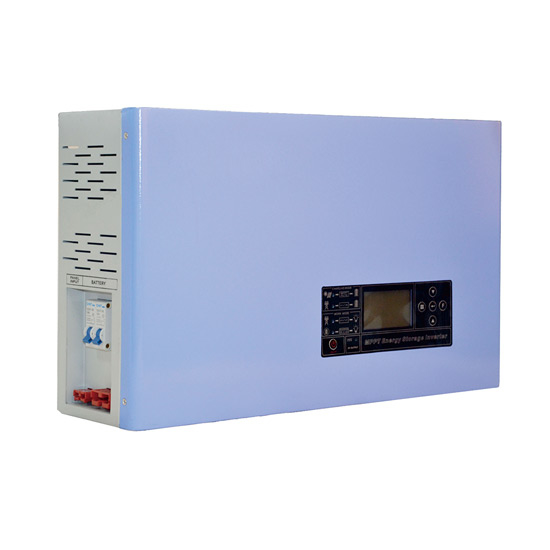

3000W 24/48V Solar Inverter with MPPT Charge Controller

This hybrid high frequency photovoltaic solar inverter built in 30A/ 60A MPPT charge controller, 3000 watt ( 5000VA) rated power, converts 24V, 48V DC to 220V, 240V AC, conversion efficiency is up to 88% with power saving mode.
SKU: ATO-IC-3000
Free shipping
Delivery date: 6-12 days
*
*
*
*
$1,334.28
Products specifications

Pure sine wave 24 volt/ 48 volt 3000W photovoltaic hybrid off grid solar inverter with 30 amps or 60 amps MPPT charge controller, LCD screen display, multiple protections of input reverse polarity/ undervoltage/ overvoltage/ short circuit/ overload/ over temperature.

3000W 24V Solar Inverter with MPPT Charge Controller Specifications

Model ATO-IC-3000
Rated capacity 3000W (5000VA)
Size 486*385*169mm
Net Weight 38kg
Function Setting Time & date setting, Contrast, lightness, Switch voltage, Grid charge, Clear records, Operating parameter, Discharge limited setting, Reset
Working mode Grid priority/ Battery priority (optional)
Charge mode PV priority/ PV+grid (optional)
LCD dislpay Internal and External temperature, record query (fault record), system information query
PV input Voltage range 12V DC (18V-150V DC), 24V DC (34V-150V DC), 48V DC (65V-150V DC), 96V DC (130V-180V DC)
Battery max charge current 30A 60A
Battery volatge 24V/ 48V 24V/ 48V
Max power load 840W/ 1650W 1700W/ 3400W
Float voltage 12V (13.75V), 24V (27.5V), 48V (55V), 96V (110V)
Equalization voltage 12V (14.2V), 24V (28.4V), 48V (56.8V), 96V (113.6V)
Grid Input Battery type Lead acid/ gel/ lithium (optional, factory setting)
Charge current 0-30A
Charge mode Improve charge, direct charge, float charge
AC Output AC charge current Standard: 0-30A
AC output voltage 110/ 220/ 230/ 240V ±3%
AC output frequency 50Hz/ 60Hz
Conversion Efficiency ≥85%
Overload 105-120% 30s, 120-150% 10s,>150% 5s
Output form Pure sine wave
Output power factor ≥0.8
Wave form distortion ≤3%
Switching time ≤4ms
Protection Function Overload capacity 105-120% 30s, 120-150% 10s,>150% 5s
Over discharge 10.5V (12V) DC/ 21V (24V) DC/ 42V (48V) DC/ 84V DC shut down after alarm
Over charge 16V (12V) DC/ 32V (21V) DC/ 64V (48V) DC/ 128V DC shut down after alarm
High temperature 85℃ auto shut down after alarm
Short circuit Auto shut down
Others Cooling method Fan cooling
Noise <60 dB
Operating temperature -10℃-50℃
Environment humidity 10%-90% (No condensation)
Working Elevation <5000m (>1000m, derating)

Solar Inverter with MPPT Charge Controller Working Mode Instructions

Solar inverter with MPPT charge controller work mode instructions

Tips: Solar inverter with MPPT charge controller troubleshooting

1. Inverter overheated
Solution: Please check whether the inverter is placed next to the heat source. Whether the fan port of the inverter has a shelter and the fan is working.

2. Inverter battery overdischarge
Solution: a. The battery capacity is small and pls reduce load. b. Battery aging, please repalce battery. c. Weather, extended charging time

3. Inverter output short circuit
Solution:  Checking circuit. If it is due to overload, please reduce the electrical load and restart the machine.

4. Inverter no AC output
Solution: A.The system is in standby mode, pls restart. B.The system is in alarm protection state, please release the alarm.

5. PV is not charging of controller
Solution: a. Whether the operating voltage of the photovoltaic module within the operating range of the MPPT controller. b. Check if the voltage displayed on the PV system screen is accurate or not. c. Check whether the photovoltaic input switch of the controller is disconnected or not.
