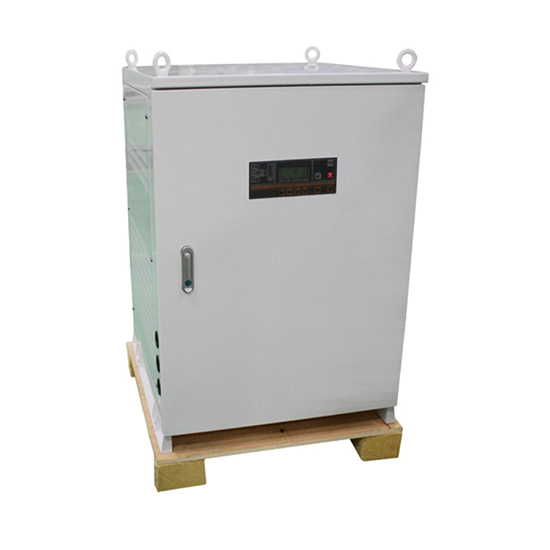

50kW Three Phase Grid Tie Solar Inverter

$8,082.69

| 1 review(s) | Add your review

Pure sine wave three phase 50kW grid tie inverter without transformer for on grid solar system. 3 phase grid tie inverter has a wide input voltage range of 200-820V and wide output range of 280V-480V, max DC input voltage to 850V, multi-language LCD, 2 way MPPT, MPPT efficiency more than 99%. The cooling method of 50 kw on grid inverter is a cooling fan. It has strong IP65 protection and a completely sealed cover of a 3-phase grid-connected inverter suitable for harsh environments.

Delivery date: 6-12 days

SKU: ATO-GTI-TLC50000

AC Output Voltage (3-phase) *

With WiFi Module

Yes [+$154.96]

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

increase decrease

Overview
Specs
Manual
FAQ
Reviews

Overview

The high-power 50kW grid tie solar inverter converts 200-820V DC to 3 phase 380 volt, 460 volt and feed the power into the grid, high reliability due to perfect protection function, powerful communication interfaces, easy operation and installation. With a power capacity of 50 kilowatts, this three-phase grid-connected inverter is typically used for medium to large-scale solar installations, such as in commercial buildings, industrial facilities, or large residential complexes.

Features:

LCD is convenient for the user to monitor the main parameters of the grid tie inverter.
On-grid solar inverter with over-voltage, short circuit, overload, overheating, anti-islanding protection, etc.
Strong IP65 protection and a completely sealed cover suitable for harsh environments.
The on-grid inverter adopts with no isolation transformer H6 full-bridge configuration, highest efficiency reach 97%.
Multiple inverters can be operated in parallel and support various communication modes.
Advanced MPPT tracking technology and wide MPPT voltage range, which optimizes the power output from solar panels by adjusting the voltage and current for maximum efficiency.

Details:

Multiple Protection

It enhances system reliability and safety by safeguarding against over-voltage, under-voltage, over-current, and short circuits. This protection ensures consistent performance, minimizes downtime, and extends the lifespan of both the solar grid tie inverter and connected equipment. It helps in maintaining grid stability by preventing disturbances caused by inverter malfunctions. Also, it can prevent costly damage and reduce maintenance expenses.

IP65 Protection

It ensures complete protection against dust ingress, enhancing the inverter's reliability and longevity in harsh environments. IP65 rating also protects against low-pressure water jets from any direction, allowing the grid tie PV inverter to be installed outdoors without risk of water damage. IP65 protection increases durability, reduces maintenance needs, and ensures stable performance in challenging conditions.

LCD Display

It provides real-time monitoring and feedback on the solar grid connected inverter system's performance, allowing users to quickly identify any issues or anomalies. This promotes efficient troubleshooting and maintenance and enhances the user interface, allowing for easy configuration and adjustment of settings for optimal performance.

Applications:

Irrigation System

New Energy Field

Medical Devices

Industrial Automation

Specs

MODEL	ATO-GTI-TLC50000
DC INPUT	Max. DC Input Power	55000 watt
	Max. DC Input Voltage	850V DC
	Max. DC Input Current	150A
	MPPT Tracking Voltage Range	200-820V
	MPPT Tracking Number / Each Input String Number	1
	Power ON / OFF Voltage	200V / 300V
	Input Terminal	MC4
AC OUTPUT	Power	50kW
	Output Voltage	Default AC 3-phase 380V±5%, (Optional: 208V, 240V, 460V, 480V with ±5% tolerance)
	Frequency	50Hz / 60Hz
	Phase	3 phase 4 line (3L+N+PE)
	Power Factor	0.9
	Maximum Current	75A
	Current THD	At rated power and in the sine wave ＜3.5%
	Max. Efficiency	98.6%
	MPPT Efficiency	99.5%
	Output Terminal	Connect terminals
STRUCTURE	Protection Degree	IP65
	Cooling Method	Cooling fan
	Topology	No transformer
	Noise	<50db
	Data Interfaces	RS 485C / RS232 (Standard) / WiFi Module (Optional)
	Isolation Type	Non-isolated
	Standby Power Consumption	<5W
	Display	LCD
	DC Switch	Integration
	AC Switch	Integration
	Protection Functions	DC input switch, Anti-island, Output over-current, Input reverse connection, DC/AC surge protection, Insulation resistance testing, RCD testing, Upgrade WiFi, Flexible solar panel
ENVIRONMENT	Operation Temperature	Air Flow, -10℃~40℃
	Storage Temperature	-20℃~60℃
	Relative Humidity	0~100%
	Altitude	2000m, max 3000m
OTHERS	Size (WHD)	830890685mm
	Weight	163kg
	Certificate	IEC
	Warranty	5 years

Manual

Three-phase Grid Tie Inverter Installation Guide

PDF Three-phase Grid Tie Inverter User Manual

FAQ

What are the benefits of buy 50kW three phase grid tie solar inverter for solar system?

Buy 50kW on grid inverter for your solar system will reduces your electricity bill, as you no longer depend on the electric utility alone. And for some months, you will not even pay the electricity bill. Your premises will consume most or all their electricity requirements from the solar system, and you installed this grid tie inverter, sometimes your grid tied solar system will produce an excess power which your loads may not need, so it pushed back to electric utility. By installing 2 energy meters, one of them to measure the energy your premise consumes and the other to measure the energy pushed in electric utility, you will know how many kilo watts hour electricity your system generate and how many kilo watts hour electricity pushed back to the electric utility, and this called Net metering. So, at the end your solar PV grid tie system will return back its price in a certain number of years and you will continue getting your energy saving longer after. An economical feasible study usually done by the grid tie solar system specialists to indicate the return back of investment.
