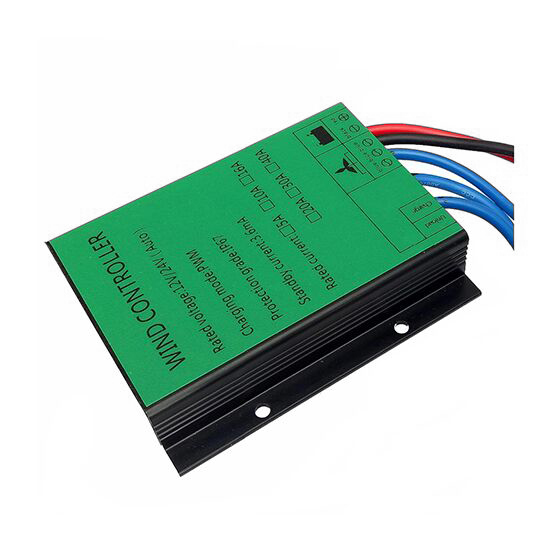

600W Wind Turbine MPPT Charge Controller, 12V/24V
600W Wind Turbine MPPT Charge Controller, 12V/24V 600W Wind Turbine MPPT Charge Controller, 12V/24V 600W Wind Turbine MPPT Charge Controller, 12V/24V 600W Wind Turbine MPPT Charge Controller, 12V/24V

600W Wind Turbine MPPT Charge Controller, 12V/24V

$104.61
| 3 review(s) | Add your review
Wind mppt charge controller for wind turbine generator, 600W, 12V or 24V is optional, the wind controller makes the wind power system safe, stable, reliable and has a long service life. Wind mppt charge controller automatically recognizes 12V/24V battery.
Free shipping
Delivery date: 6-12 days
SKU: ATO-WTCMPPT-600
increase decrease
  • Overview
  • Reviews
Overview

Buy 12V/24V wind turbine charge controller, mppt control, fan power output, good charging effect, economical and applicable, breeze start wind turbine, 600 watt rated power.

Specification:

Model ATO-WTCMPPT-600
Rated Voltage 12V/24V (Automatic recognition voltage)
Wind Generator Rated Power 600W
Protection Overcharge, overdischarge, reverse connnection of batteries,overloading, lighting, current control, automatic braking
Function MPPT Charging
Unloading Way PWM electrodeless and noiseless unloading
Working Temperature -20~+60°C 35~85%RH
Dimension 100*80*15mm
Net Weight 0.4kg

Note: The controller needs to be selected according to the power of the wind turbine and the battery voltage. Max voltage setup: 12.4V for 12V batteries, 29V for 24V batteries, and 58 for 48V batteries.

Features:

  1. High quality technical components ensure the stability and reliability of the wind turbine controller.
  2. Waterproof and dustproof, the controller can be used in various outdoor environments.
  3. Voltage/current control charging ensures that the battery is always charged.
  4. The MPPT charging effect is to collect electrical energy from the generator and charge the battery.
  5. Use PWM to unload excess electron energy to protect the battery and ensure the safety of the wind generator.

Wind Power System Connection Diagram:

wind power system control schemes

Tips: Safety notes

  1. When installing insulated tools, use insulated tools. Do not use inferior tools.
  2. Do not use inferior batteries to prevent leakage or corrosion.
  3. Do not use cables that are too thin or of poor quality to avoid leakage or fire.
  4. Do not keep the positive and negative terminals of the battery.
  5. Do not place the controller in the environment of humidity, dust, rain, severe vibration, corrosion and strong electromagnetic interference. It is strictly prohibited to install and use this controller in a mixed flammable gas environment.
