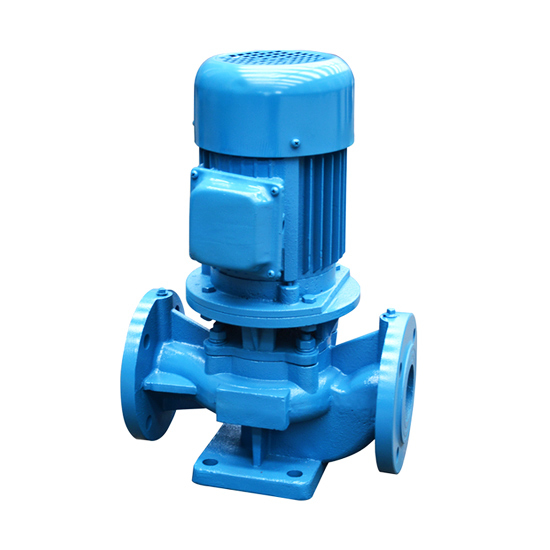

75 hp Vertical Centrifugal Pump

75 hp Vertical Centrifugal Pump

$10,389.23
PRICE BREAKS - The more you buy, the more you save
Quantity
5+
10+
50+
Discount
13.9% OFF
14.7% OFF
15.6% OFF
| 1 review(s) | Add your review
75 hp vertical centrifugal pump is a non-self-priming centrifugal pump that has a maximum flow of 224m3/h (986 gpm), a maximum head of 76m (249ft), and the same diameter of inlet and outlet 150mm (6 inches). Low price 3 phase centrifugal pump also has optional input voltage AC 220V/ 240V/ 380V/ 460V to 480V and optional input frequency 50Hz/60Hz, can be used in pipeline pressurization of production line, cooling tower water feeding, fire water and air condition system water supply, and high-rise building pressurized water supply.
Delivery date: 6-12 days
SKU: ATO-VCP-055KW
*
*
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
increase decrease
  • Overview
  • Reviews
Overview

75 hp vertical centrifugal pump with 224m3/h maximum flow, 76m maximum head, and 150mm diameter of inlet and outlet.

Features:

  1. The centrifugal pump has a vertical structure. The diameter of the inlet and outlet are the same. The inlet and outlet are on the same center line so that the vertical centrifugal pump can be installed in the pipeline like a valve. If a protective cover is added, it can be used in the open air.
  2. It is easy to install and maintain. There is no need to dismantle the pipeline system, just lift off the conjunction flat nut of the vertical pump. Then, all the rotor parts can be taken out.
  3. A vertical centrifugal pump can operate in series or parallel connection according to the requirements of flow and head.
  4. A vertical pump can be installed vertically or horizontally according to the requirement of the pipeline system.

Specifications:

Model ATO-VCP-150-250A
Weight 580kg
Size 700*640*1200mm
Power 75 hp (55kW)
Phase 3 phase
Input voltage * AC 220V, 230V, 240V, 380V, 400V, 415V, 440V, 460V, 480V
Input frequency * 50Hz, 60Hz
Flow (min. flow to max. flow) 112m3/h (493 gpm, American system) 187m3/h (823 gpm, American system) 224m3/h (986 gpm, American system)
Head (max. head to min. head) 76m (249ft) 70m (230ft) 63m (207ft)
Efficiency 64% 75% 73%
Inlet diameter 150mm (6 inch)
Outlet diameter 150mm (6 inch)
Installation mode Vertical type or horizontal type
Nominal diameter of impeller 250mm
Pump type Booster pump
Number of stages Single stage
Motor type Y/Y2 series motor
Motor speed 2900rpm
Impeller material 304/316 stainless steel
Seal material 304 stainless steel, tungsten carbide, fluorine rubber
Inlet max. pressure 1MPa (145 psi)
(NPSH)r 4.5m
Usage Water or liquids compatible with pump component materials.
1. The volume of solid particles should be less than 0.1% in unit volume, and the granularity should be less than 0.2mm.
2. The temperature should be lower than 60℃.
Environment Temperature: <40℃, humidity: <95%, altitude<1000m
Warranty 12 months



Vertical centrifugal pump dimension (unit: mm):

Boundary dimension Installation dimension Flange dimension
L B H C1*B1 A C2*B2 4-Φd1 ΦD ΦD1 n-Φd
700 640 1200 250*300 200 200*240 4-Φ22 Φ285 Φ240 8-Φ22

vertical centrifugal pump dimensional drawing

Tips: Hazard of the centrifugal pump reversal rotating

The reversal rotating of the water pump can also be divided into active reversal rotating and passive reversal rotating. The caused hazard differs as well.

Active reversal rotating means that the motor drives the reversal rotating of the pump, which is mainly caused by the wrong connection of the motor wire. The main hazards include:

  1. The mechanical seal with a rotating requirement will probably be damaged.
  2. The shaft sleeve lock nut and the impeller lock nut(impeller cap) with the rotating requirement might become loose. If the pin is used for the connection, the influence is not big.

Passive reversal rotation refers to the pump dragging the motor to have a reversed rotating. The liquid in the pump outlet line flows back into the inlet, causing the pump to have reverse rotation, which drives the motor to have reverse rotation (need to consider whether the motor has power loss at this moment). The main hazards are:

  1. The mechanical seal with a rotating requirement will probably be damaged.
  2. The shaft sleeve lock nut and the impeller lock nut(impeller cap) with the rotating requirement might become loose. If the pin is used for the connection, the influence is not big.
  3. The pump of the balancing disk or balancing drum will probably damage the balancing disk or balancing drum.
  4. Cause water hammer and damage the pump structure.
  5. The multistage centrifugal pump(guide blade type) will easily cause resonance in the rotating speed and damage the pump equipment.
Write your own review
*
*
Existing reviews
Will there be a discount for more purchases?
Do you have any discounted prices if I want to buy multiple 75hp vertical centrifugal pumps?
Llor Llor | 1/13/2022 1:33 AM
Was this review helpful? Yes No (0/0)
Responded by inverter.com
Yes, we can provide a vertical discount for multiple 75hp vertical centrifugal pump purchase.
