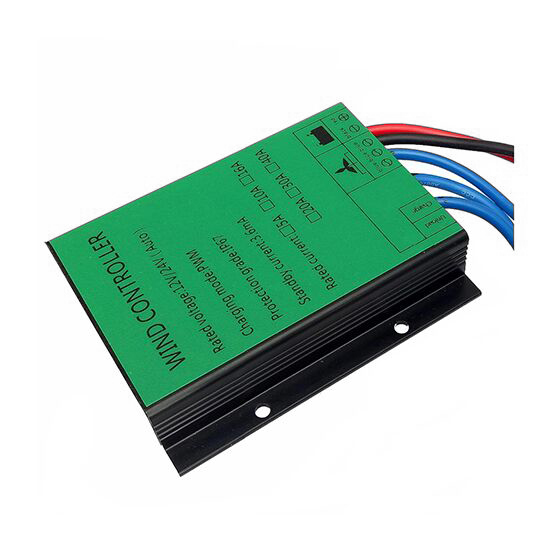

800W Wind Turbine MPPT Charge Controller, 12V/24
800W Wind Turbine MPPT Charge Controller, 12V/24
800W Wind Turbine MPPT Charge Controller, 12V/24
800W Wind Turbine MPPT Charge Controller, 12V/24
800W Wind Turbine MPPT Charge Controller, 12V/24

800W Wind Turbine MPPT Charge Controller, 12V/24

$129.82
| 4 review(s) | Add your review
MPPT wind charge controller for sale, 800W, 24V, waterproof dust cover design to prevent damage caused by outdoor use, high-quality aluminum alloy design, small size, good heat dissipation effect.
Free shipping
Delivery date: 6-12 days
SKU: ATO-WTCMPPT-800
increase decrease
  • Overview
  • Reviews
Overview

Wind turbine mppt charge controller for sale, voltage 12V/24V/48V (auto), high protection, IP67, standby current 3.6mA, wind power charge controller is safe and reliable, and can effectively prevent the runaway when the wind speed is too fast, and the danger to the wind generator when strong wind occurs.

Note: The controller needs to be selected according to the power of the wind turbine and the battery voltage. Max voltage setup: 12.4V for 12V batteries, 29V for 24V batteries, and 58 for 48V batteries.

Specification:

Model ATO-WTCMPPT-800
Rated Voltage 12V/24V/48V (Automatic recognition voltage)
Wind Generator Rated Power 800W
Protection Overcharge, overdischarge, reverse connnection of batteries,overloading, lighting, current control, automatic braking
Function MPPT Charging
Unloading Way PWM electrodeless and noiseless unloading
Working Temperature -20~+60°C 35~85%RH
Dimension 100*80*15mm
Net Weight 0.4kg

Features:

1. High quality technical components ensure the stability and reliability of the wind turbine controller.
2. Waterproof and dustproof, the controller can be used in various outdoor environments.
3. Voltage/current control charging ensures that the battery is always charged.
4. The MPPT charging effect is to collect electrical energy from the generator and charge the battery.
5. Use PWM to unload excess electron energy to protect the battery and ensure the safety of the wind generator.

Wind Power System Connection Diagram:

wind power system control schemes

Tips: What should you pay attention to?

  1. It is strictly prohibited to place any flammable, explosive and dangerous materials around the controller.
  2. Please keep all symbols on the controller intact, and keep children away from the scene to avoid accidents.
  3. Do not open the case of the product itself.
  4. When installing the device, make sure to place the terminal block on the bottom of the device to prevent rainwater from pouring into the case.
