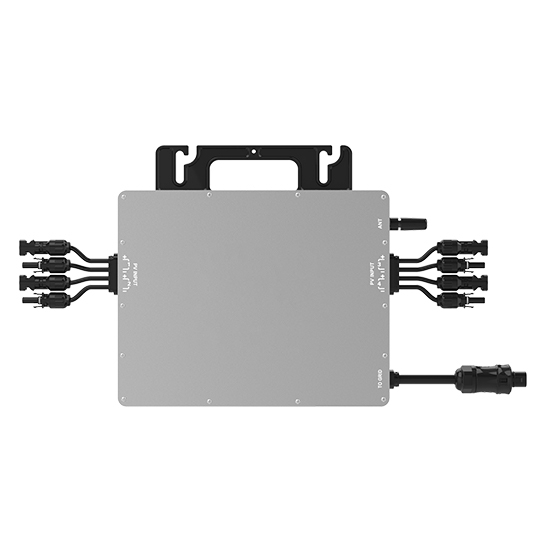

2000 Watt Solar Micro Inverter, Grid-tie Inverter

$591.71

PRICE BREAKS - The more you buy, the more you save

Quantity

10+

50+

Discount

3% OFF

4% OFF

5% OFF

| 6 review(s) | Add your review

Economical price 2000 watt solar micro inverter with IP67 waterproof protection, more stable and efficient. The working temperature of this solar power micro inverter is between -20℃ and 50℃. Smart micro inverters are often used in farming generation systems, power stations, and household use.

Free shipping

Delivery date: 6-12 days

SKU: ATO-GTMI-2000-WiFi

Output Voltage *
Output Socket *

increase decrease

Overview
Specs
Manual
FAQ
Reviews

Overview

Reasonable price micro inverter 2000W is a grid connected solar inverter with IP67 waterproof streamline design, convert 24 V / 48 V (22-60 V DC) to 80-160 V / 180-260 V AC, the AC output can be chosen 120 V or 230 V according to the local grid voltage, built-in high-performance MPPT function for higher efficiency.

Features:

Input/output is fully isolated to protect the electrical safety
Flexible installation, operation, and maintenance costs are low
Use the wifi communication mode
High-performance maximum power point tracking (MPPT), reverse power transmission, increasing system efficiency
Multiple parallel stacking, digital control system, intelligent monitoring management, and simplified maintenance (user serviceable)

Details:

Waterproof Protection

The shell of the photovoltaic micro inverter is made of pure aluminum alloy with a low resistance copper core. It enhances safety by reducing the risk of electrical hazards, such as short circuits or corrosion due to moisture exposure. They protect against water ingress, preventing damage and ensuring the longevity of the system.

MPPT

MPPT enhances energy harvest, leading to higher overall system efficiency and increased electricity production. It also improves system reliability by reducing stress on components. Additionally, MPPT allows for more flexible system design, as each panel operates independently, making it easier to expand or modify installations without impacting the overall performance of the 2200W pv micro inverter.

Power Chip

The AC micro inverter is equipped with a high-speed digital processing chip, which makes the operation more stable. It enhances efficiency by optimizing power conversion processes, minimizing energy losses, and maximizing power output. Multi-channel maximum power point tracking, high-precision capture of solar light.

Applications:

Solar Roof

PV Communication Station

Farming Generation System

Small Power Station

Specs

DC Input	Model	ATO-GIMI-2000-WIFI
	Max Solar Panel lnput Power	4*625W
	MPPT Voltage Range (solar panel open circuit voltage range)	33-54V
	Starting Voltage	＞22V d.c.
	Working Voltage Range	22-60V d.c.
	Maximum Input Current	4×20A
	Maximum Input Short Circuit Current	4×23A
	Maximum Feedback Current Of The Array	0
AC Output	Maximum Output Power	2000W
	Rated Output Current	@120V 16.6A/@230V 8.7A
	Nominal Output Voltage Range	@120V a.c. (80-160V AC)/@230V a.c. (180-260V AC)
	Nominal Frequency Range	50Hz/60Hz
	Power Factor	>0.99 default 0.95 leading...0.95lagging
	Harmonic Distortion Of Output Current	＜5%
	Maximum Number Of Connections Per Branch	@120V 2 units/@230V 4 units
Efficiency	Peak Microinverter Efficiency	92.70%
	CEC Weighted Efficiency	92.50%
	Nominal MPPT Efficiency	99.80%
	Night Time Power Consumption (mW)	0
Mechanical Data	Ambient Temperature Range	-20~+50℃
	Storage Temperature Range	-20~+50℃
	Dimensions (LxWxH)	308×297×42mm
	Weight	6.34kg
	Waterproof Level	Outdoor Nema 3r (IP67)
	Cooling Method	Natural cooling (no fan)
	Degree of Pollution	PD3
Feature	Power Delivery Mode	Reverse transmission, load priority
	Communication Method	WiFi
	Rated Transmit Power	802.11b:+17dBm ± 1.5dBm (@11Mbps) 802.11g:+15dBm± 1.5dBm(@54Mbps) 802.11n:+14dBm± 1.5dBm (@HT20, MCS7)
	Sureillance System	Smart life
	Warranty	10 years
	Electrical Standard	EN 55011:2016+A2:2021;BS EN 55011:2016+A2:2021 CISPR 11:2015/AMD2:2019; EN IEC61000-3-2:2019+A1:2021; EN IEC 62311:2020 BS EN IEC 61000-3-2:2019+A1:2021; EN301 489-1 V2.2.3 (2019-11);IEEE 1547A:2014 EN 301 489-17 V3.2.4 (2020-09); EN 300 328 V2.2.2 (2019-07); DIN VDE V 0126-1-1 (VDE V 0126-1-1):2013-08; VDE-AR-N 4105 (VDE-AR-N 4105):2011-08; DIN VDE V 0124-100 (VDE V 0124-100):2012-07; IEC 62109-1:2010; IEC 62109-2:2011 DIN VDE 0126-1-1 (VDE V 0126-1-1):2013-08 VFR 2019 UL 1741:2010 Ed.2+R:16Sep2020 CSA C22.2#107.1:2016 Ed.4 ABNT NBR 16149:2013;ABNT NBR 16150:2013 ABNT NBR IEC 62116:2012 ANEXO III - parte 2, Portaria n,° 357, de 01 de agosto de 2014
	Bluetooth	2402-2480MHz Bluetooth EIRP Power (Max.) 7.89dBm
	Wifi 2.4G	2412-2472MHz Wifi 2.4G EIRP Power (Max.) 18.08dBm
Package	G.W	7.9kg (single)
Package	Size	49035095mm

Manual

2000W-2800W Micro Inverter User Manual

FAQ

What are the disadvantages of micro inverter?

One significant drawback is the higher upfront cost compared to traditional string inverters. While the price of microinverters has decreased over time, they still tend to be more expensive per watt of capacity installed. This can be a barrier for homeowners or businesses with budget constraints, potentially impacting the overall return on investment of the solar PV system.

Another disadvantage is the complexity of installation and maintenance. Microinverters require individual installation on each solar panel, which can increase the labor and time needed for setup. Additionally, having multiple inverters distributed across the array means more components that could potentially fail or require maintenance over time. This complexity can also make troubleshooting issues more challenging compared to centralized string inverters.

Furthermore, photovoltaic micro inverters may be less suitable for larger-scale solar installations due to their decentralized nature. In such cases, centralized inverters may offer cost savings and simpler maintenance.

Write your own review

Review title: *

Review text: *

Rating:

1 2 3 4 5

Existing reviews

For my solar system

I need micro inverter for my solar system, so I bought three 2000 watt solar micro inverters and all work very well. It has been used for two months now, and no problems have been found.

From: Sean Doe | Date: 4/15/2025 12:56 AM
