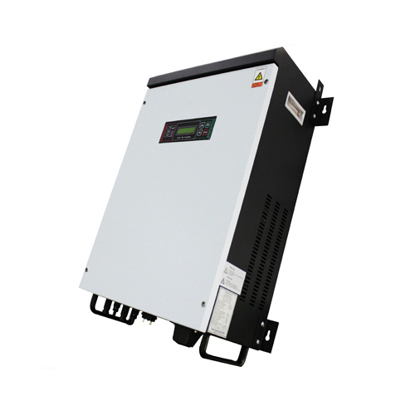

6000W Single Phase Grid Tie Solar Inverter

DC 180-500V MPPT to single phase AC 230V (190-270V) on grid inverter for grid tied solar power system, with 6000W rated power, max power to 6500W, no isolated transformer type, perfect protection functions, LCD displays, clearly to know the status.
SKU: ATO-GTI-6000
Free shipping
Delivery date: 6-12 days
$1,406.87
Products specifications
Attribute name Attribute value
Installation Guide

PDFSingle-phase Grid Tie Inverter Installation Guide

User Manual

PDFSingle-phase Grid Tie Inverter User Manual

6000 watt 1-phase on grid tie solar inverter has wide input voltage range, high MPPT efficiency more than 99%, converting 180-500 volt to 220/ 230/ 240 volt. Affordable price pure sine wave inverter, factory wholesale and free shipping to your city.

Features

  • Can be applied to various fields, mainly for solar power, wind power, battery power, and scenery lamp power.
  • Strong IP65 protection, completed sealed cover suitable for harsh environment.
  • Advanced MPPT tracking technology, wide MPPT voltage range.
  • No isolation transformer H6 full-bridge configuration, highest efficiency reach 97%.
  • Over voltage, short circuit, overload, overheating, anti-islanding protection etc.
  • Multiple inverters can be operated in parallel.
  • LCD display, convenient for user to monitor main parameters.
  • Support various communication modes.

Parameter List

MODEL ATO-LT6000
DC INPUT Max. DC Input Power 6500 watt
Max. DC Input Voltage 500V DC
Max. DC Input Current 28A
MPPT Tracking Voltage Range 180-500V
MPPT Tracking Number / Each Input String Number 1/2
Power ON / OFF Voltage 200V / 100V
Input Terminal MC4
AC OUTPUT Power 6000W
Output Range Single phase AC 190~270V
Adjustable according to different countries and regions requirement.
Rated Voltage L+N+PE 220V/ 230V/ 240V AC
Frequency 50Hz / 60Hz
Phase Single phase
Power Factor 1
Maximum Current 27A
Current THD At rated power and in the sine wave <3.5%
Max. Efficiency 97%
MPPT Efficiency 99.5%
Output Terminal Connect terminals
STRUCTURE Protection Degree IP20
Cooling Method Cooling fan
Topology No transformer
Noise <50db
Data Interfaces RS 485C / RS232 (Standard) / WiFi Module (Optional)
Isolation Type Non-isolated
Standby Power Consumption 0W
Display LCD dispaly
DC Switch Integration
AC Switch Integration
Protection Functions DC input switch, Anti-island, Output over-current, Input reverse connection, DC/AC surge protection, Insulation resistance testing, RCD testing, Upgrade WiFi
ENVIRONMENT Operation Temperature Air Flow, -10℃~40℃
Storage Temperature -20℃~60℃
Relative Humidity 0~100%
Altitude 2000m, max 3000m
OTHERS Size (W*H*D) 410*445*210mm
Weight 25kg
Certificate CE / G83 / IEC / TUV / SAA
Warranty 5 years

Tips: What are the types of on grid inverter?

There are 3 types of inverters in the market:

  1. Low frequency with transformer coupling inverter.
  2. High frequency with transformer coupling inverter.
  3. Transformer-less inverter.

For the first and second type, the inverter has a transformer inside and a computer unit which schedule converting the DC power to low or high frequency and return to DC power again, then converting to final AC voltage which matches the power grid. Inverter.com offers 300W to 1000W grid tie inverters and 300W to 1400W micro solar inverters with transformer design.

For transformer-less inverter, it doesn't have transformer inside, so it converts DC to AC with high converting efficiency. Although the price of transformer type inverter is lesser than transformer-less type, but transformer-less inverter is smaller, lighter and more efficient.

One thing pertaining to transformer-less type is, it doesn't have a transformer inside, so there will be concerns about the absence of galvanic isolation between DC side and AC side, so the probability of injecting dangerous DC currents and voltages into the power grid.

6000 watt 1-phase on grid tie solar inverter has wide input voltage range, high MPPT efficiency more than 99%, converting 180-500 volt to 220/ 230/ 240 volt. Affordable price pure sine wave inverter, factory wholesale and free shipping to your city.

Features

  • Can be applied to various fields, mainly for solar power, wind power, battery power, and scenery lamp power.
  • Strong IP65 protection, completed sealed cover suitable for harsh environment.
  • Advanced MPPT tracking technology, wide MPPT voltage range.
  • No isolation transformer H6 full-bridge configuration, highest efficiency reach 97%.
  • Over voltage, short circuit, overload, overheating, anti-islanding protection etc.
  • Multiple inverters can be operated in parallel.
  • LCD display, convenient for user to monitor main parameters.
  • Support various communication modes.

Parameter List

MODEL ATO-LT6000
DC INPUT Max. DC Input Power 6500 watt
Max. DC Input Voltage 500V DC
Max. DC Input Current 28A
MPPT Tracking Voltage Range 180-500V
MPPT Tracking Number / Each Input String Number 1/2
Power ON / OFF Voltage 200V / 100V
Input Terminal MC4
AC OUTPUT Power 6000W
Output Range Single phase AC 190~270V
Adjustable according to different countries and regions requirement.
Rated Voltage L+N+PE 220V/ 230V/ 240V AC
Frequency 50Hz / 60Hz
Phase Single phase
Power Factor 1
Maximum Current 27A
Current THD At rated power and in the sine wave <3.5%
Max. Efficiency 97%
MPPT Efficiency 99.5%
Output Terminal Connect terminals
STRUCTURE Protection Degree IP20
Cooling Method Cooling fan
Topology No transformer
Noise <50db
Data Interfaces RS 485C / RS232 (Standard) / WiFi Module (Optional)
Isolation Type Non-isolated
Standby Power Consumption 0W
Display LCD dispaly
DC Switch Integration
AC Switch Integration
Protection Functions DC input switch, Anti-island, Output over-current, Input reverse connection, DC/AC surge protection, Insulation resistance testing, RCD testing, Upgrade WiFi
ENVIRONMENT Operation Temperature Air Flow, -10℃~40℃
Storage Temperature -20℃~60℃
Relative Humidity 0~100%
Altitude 2000m, max 3000m
OTHERS Size (W*H*D) 410*445*210mm
Weight 25kg
Certificate CE / G83 / IEC / TUV / SAA
Warranty 5 years

Tips: What are the types of on grid inverter?

There are 3 types of inverters in the market:

  1. Low frequency with transformer coupling inverter.
  2. High frequency with transformer coupling inverter.
  3. Transformer-less inverter.

For the first and second type, the inverter has a transformer inside and a computer unit which schedule converting the DC power to low or high frequency and return to DC power again, then converting to final AC voltage which matches the power grid. Inverter.com offers 300W to 1000W grid tie inverters and 300W to 1400W micro solar inverters with transformer design.

For transformer-less inverter, it doesn't have transformer inside, so it converts DC to AC with high converting efficiency. Although the price of transformer type inverter is lesser than transformer-less type, but transformer-less inverter is smaller, lighter and more efficient.

One thing pertaining to transformer-less type is, it doesn't have a transformer inside, so there will be concerns about the absence of galvanic isolation between DC side and AC side, so the probability of injecting dangerous DC currents and voltages into the power grid.
